  Description - Menu and Toolbar Buttons

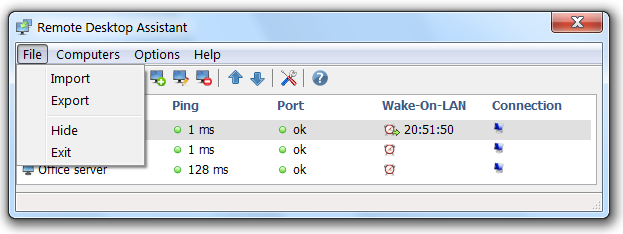

File menu

The File menu and the corresponding toolbar buttons allow to:

Import - open Remote Desktop Assistant files (.rda) and Wake-OnLAN Sender files (.wol),

Export - save current computer list to Remote Desktop Assistant files (.rda),

Hide Hide button - hide Remote Desktop Assistant window (minimize to the taskbar icon),

Exit Exit button - terminate Remote Desktop Assistant.

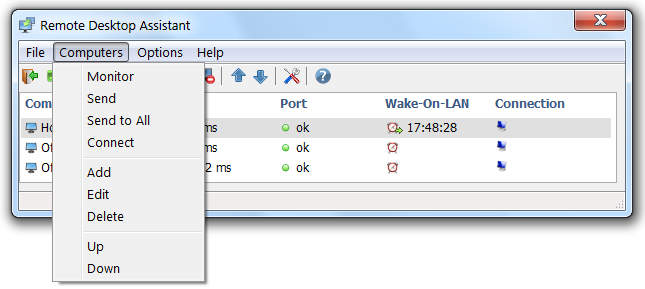

Computers menu

The Computers menu and the corresponding toolbar buttons allow to:

Monitor Monitor button - send ping and perform port monitoring,

Send Send button - send Wake-On-LAN magic packets,

Send to All - send Wake-On-LAN magic packets to all listed computers,

Connect Connect button - connect to remote computers using Microsoft Remote Desktop Connection,

Add Add button - add a new remote computer to your list,

Edit Edit button - edit a computer entry,

Delete Delete button - delete a computer entry,

Up, Down Up buttonDown button - move up and down computer entries in your list.

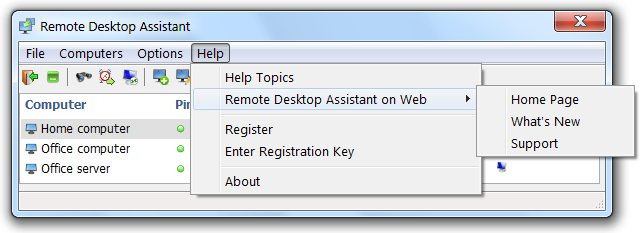

Help menu

The Help menu and the corresponding toolbar buttons allow to:

Help Topics Help button - show the current Help,

- open Remote Desktop Assistant home page,

- open Remote Desktop Assistant news page,

- open Remote Desktop Assistant support page,

- open Remote Desktop Assistant registration page,

- show the registration window: Registration Window

- show the about window.



Taskbar icon menu

The Taskbar icon menu allows to:

- open hidden Remote Desktop Assistant window,

- send Wake-On-LAN magic packets to all listed computers,

- terminate Remote Desktop Assistant.

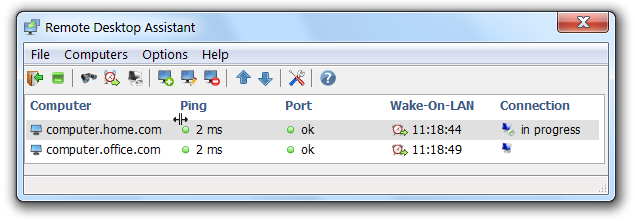

If the cursor shape is Split cursor you can change column widths:

Split screenshot
